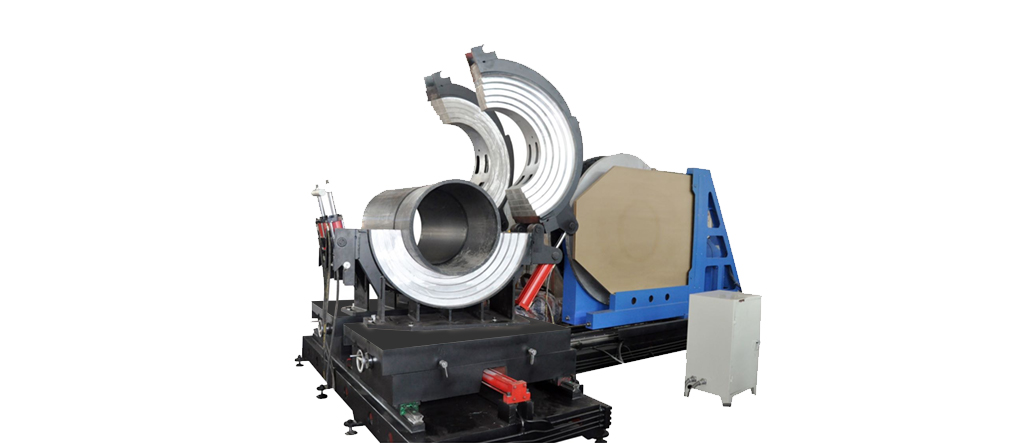

For production of welded fitting of T and Cross
Heating plate coated with teflon
One or two side facing function
Temperature control, timer setting
|
Model |
Working Range(mm) |
Heating Temperature Max.(℃) |
Heater Surface Temp. Tolerance(℃) |
Power Supply(V/Hz) |
Heating Power(KW) |
Facing Power(KW) |
Hydraulic Stantion Power(KW) |
Weight(kg) |
|
EXT-AF315 |
90-315 |
270 |
<±5 |
380,50 |
5.25 |
1.5 |
0.75 |
1000 |
|
EXT-AF450 |
250-450 |
270 |
<±5 |
380,50 |
12 |
2.2 |
3.0 |
2690 |
|
EXT-AF630 |
315-630 |
270 |
<±7 |
380,50 |
22 |
3.0 |
4.0 |
4900 |
|
EXT-AF800 |
450-800 |
270 |
<±10 |
380,50 |
40 |
3.0 |
4.0 |
7950 |
