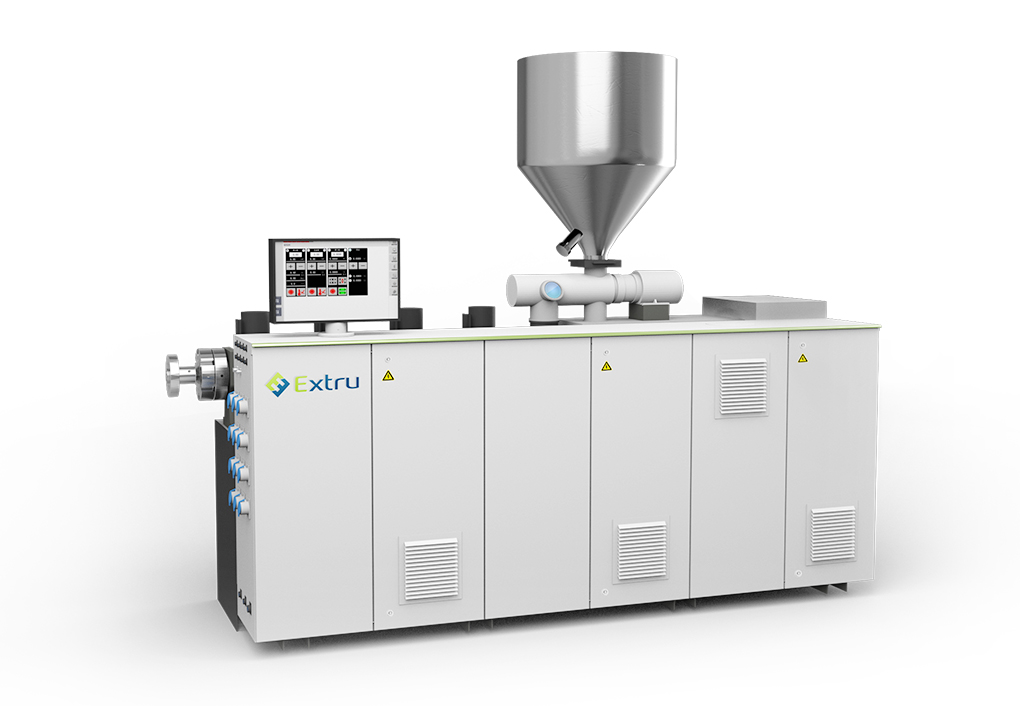

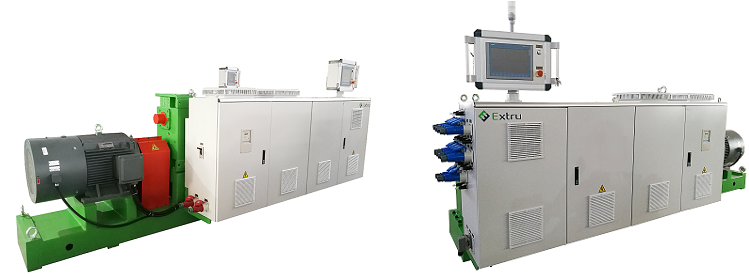

Twin Screw Extruder

    •
    advantages

    Conical twin screw structure, screw d55-92mm

    Double screw forced feeding with synchronized control

    Large lcd control panel Self-developed operation program, BUS control

    AC drive motor

    Efficient transmission and high torque gear box

    High precision melt temperature and pressure control

    Model

    Screw Diameter(mm)

    Max.output(kg/h)

    Motor Power(kW)

    EXT-SJZ55-110

    55/110

    150

    22

    EXT-SJZ65-132

    65/132

    250

    37

    EXT-SJZ80-156

    80/156

    400

    55

    EXT-SJZ92-188

    92/188

    750

    110
