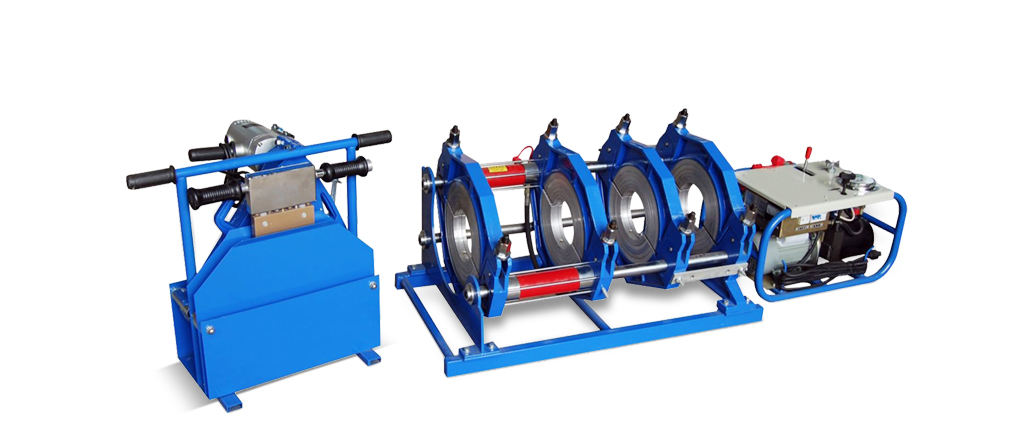

Butt Fusion Machine

    •
    advantages

    Hydraulic type

    Heating plate coated with teflon

    One or two side facing function

    Temperature control, timer setting

    Option of full automatic type

    Model

    Working Range(mm)

    Heating Temperature Max.(℃)

    Heater Surface Temp. Tolerance(℃)

    Power Supply(V/Hz)

    Heating Power(KW)

    Facing Power(KW)

    Hydraulic Stantion Power(KW)

    Weight(kg)

    EXT-BF160

    63-160

    270

    <±5

    220,50

    1.0

    0.85

    0.75

    110

    EXT-BF250

    90-250

    270

    <±5

    220,50

    2.1

    1.36

    0.75

    150

    EXT-BF315

    90-315

    270

    <±7

    220,50

    3.1

    1.36

    0.75

    210

    EXT-BF500

    315-500

    270

    <±7

    380,50

    5.4

    1.5

    1.5

    440

    EXT-BF630

    400-630

    270

    <±7

    380,50

    9.2

    1.5

    1.5

    650

    EXT-BF800

    630-800

    270

    <±7

    380,50

    12.5

    2.2

    2.2

    1260
