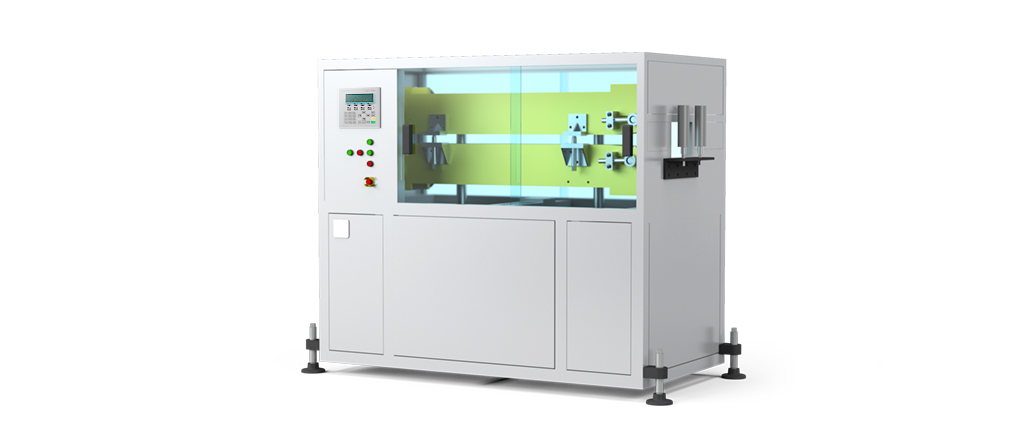

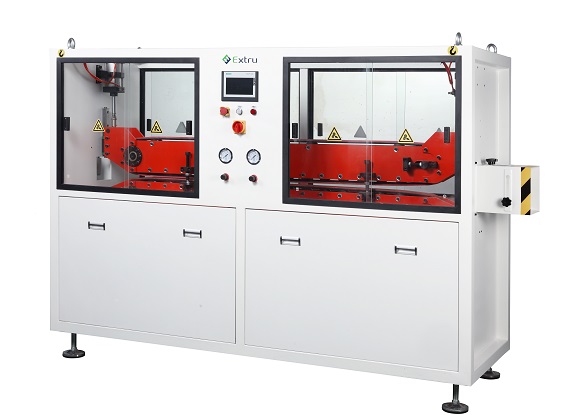

Haul Off Unit

    •
    advantages

    For PE ,PP ,PVC, ABS, PC continuous pulling

    Working range covers ø6 - ø800 mm

    With LCD display

    Servo or FC motor drive control

    Model

    Tracks Quantity

    Working Range(mm)

    Touching Length(mm)

    Max Tracking Force(N)

    Puling Spd(m/min)

    EXT-BH63

    2

    Ф16-Ф63

    1300

    10000

    1.5~45

    EXT-CH63

    2

    Ф16-Ф63

    1300

    10000

    1.5~45

    EXT-CH160

    2/3

    Ф20-Ф160

    1600

    20000

    0.6~20

    EXT-CH250

    4

    Ф50-Ф250

    1600

    30000

    0.3~10

    EXT-CH315

    4

    Ф63-Ф315

    1600

    35000

    0.2~6

    EXT-CH400

    4

    Ф75-Ф400

    2200

    40000

    0.2~5

    EXT-CH500

    4

    Ф90-Ф500

    2200

    45000

    0.15~4

    EXT-CH630

    6

    Ф110-Ф630

    2200

    60000

    0.1~3

    EXT-CH800

    8

    Ф250-Ф800

    2600

    80000

    0.07~2
