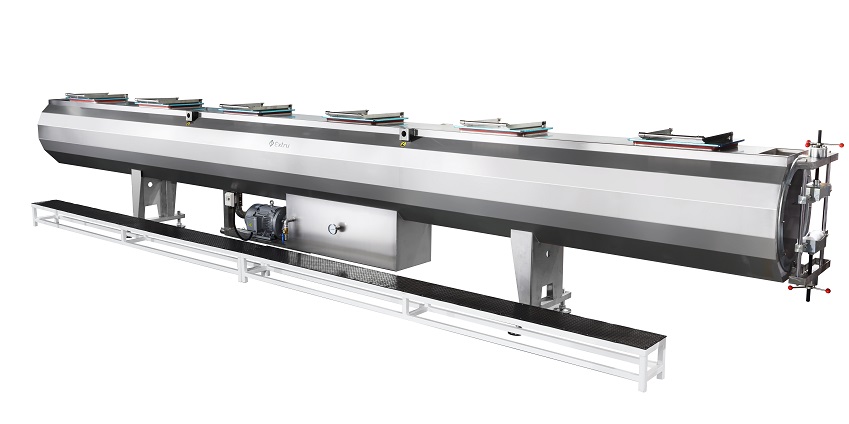

Spray Cooling Bath

    •
    advantages

    Working ranges Φ6-Φ800mm

    304 Stainless steel tank, brushed surface

    Reasonable spray nuzzle’s position, excellent cooling

    Model

    Tank Thickness

    Working Range(mm)

    Tank Length(mm)

    EXT-CF32

    δ2

    Ф6-Ф32

    5800

    EXT-CF63

    δ2.5

    Ф10-Ф63

    5800/9000

    EXT-CB63

    δ2.5

    Ф10-Ф63

    5800/9000

    EXT-CB160

    δ2.5

    Ф20-Ф160

    5800/9000

    EXT-CB250

    δ2.5

    Ф50-Ф250

    5800/9000

    EXT-CB315

    δ2.5

    Ф63-Ф315

    5800/9000

    EXT-CB400

    δ2.5

    Ф75-Ф400

    5800/9000

    EXT-CB500

    δ3

    Ф90-Ф500

    5800/9000

    EXT-CB630

    δ3

    Ф110-Ф630

    5800/9000

    EXT-CB800

    δ3

    Ф250-Ф800

    5800/9000
