Downstream

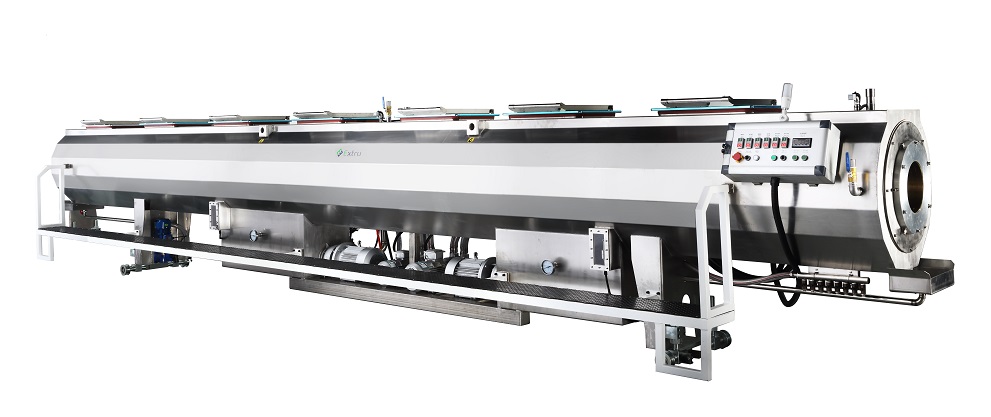

Vacuum Bath

  • advantages

    For PVC, CPVC, HDPE, PP-R ,PP-H pipe production

    Enhanced Cooling System(ECS)* to realize high speed production

    FC controlled vacuum* for lower energy consumption and stable vacuum

    304 Stainless steel tank, brushed surface

    With suitable pipe supporter to keep good ovality

    Equipped front light for working status observation

    Model

    Tank Thickness

    Working Range(mm)

    Tank Length(mm)

    EXT-VB32-9

    δ3

    Ф6-Ф32

    9000

    EXT-VB63-9

    δ4

    Ф10-Ф63

    9000

    EXT-VB63S-5.8

    δ4

    2-Ф10-Ф63

    5800

    EXT-VB160-9

    δ4

    Ф20-Ф160

    9000

    EXT-VB250-5.8

    δ4

    Ф50-Ф250

    5800

    EXT-VB250-9

    δ4

    Ф50-Ф250

    9000

    EXT-VB315-5.8

    δ4

    Ф63-Ф315

    5800

    EXT-VB315-9

    δ4

    Ф63-Ф315

    9000
